This tutorial will show you how to program the simple public goods game used in the previous section. In the admin, choose File → New app…. Type my-public-goods as the file name, then press "Create". jtree writes client/apps/my-public-goods.jtt, and opens it in the App editor.
[Note: "App", "Game" and "Treatment" are used interchangeably in jtree. An app is a list of stages, and a stage is an app: one with a screen, or one with stages of its own (see apps and stages).]
An app is a Javascript file. The App editor shows it in three modes:

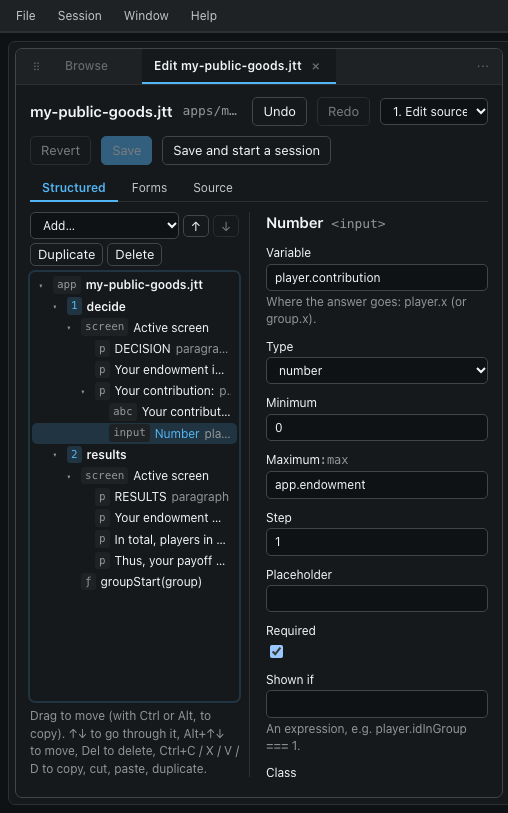

- Structured: the app as a tree, as z-Tree shows a treatment: its stages, each stage's screens, the elements on each screen (paragraphs, inputs, buttons, ...), and its functions. Choose something in the tree to change it beside the tree: the app's and a stage's settings, an element's text, the variable an input sets (
player.contribution), its type and limits, and any other attribute. Add… puts in a stage, a screen, a function, or an element (a paragraph, a number, a dropdown, radio buttons, a slider, buttons, a table, ...) after the element chosen, or at the end of the screen chosen. Elements can be dragged to another place: before or after another element (the top or bottom half of its row), into a box or a list (the middle of its row), onto a screen (its end), or onto a stage (the end of its active screen), in the same screen or another stage's; hold Ctrl or Alt to copy instead, and drag to another app's editor to copy it there. Stages are dragged to put them in another order. Elements can also be moved with the keys (Alt+↑/↓), duplicated (Ctrl+D), copied, cut and pasted (Ctrl+C/X/V) and deleted (Del). A preview shows the chosen screen, with the chosen element outlined. - Forms: a page for each part: the app's Settings and Functions, each stage (its screens, settings and functions), and Other code.
- Source: the whole file, where you can write anything; "Apply" (Ctrl+Enter) reads it into the other modes again.
In all three modes, code fields are a code editor (CodeMirror): syntax colours, line numbers, Tab to indent, matching brackets, Ctrl+F to search, Ctrl+Space to complete, and Ctrl+Z / Ctrl+Shift+Z undo and redo the typing in the field. A function, a screen or code is set when you leave its field, or on Ctrl+Enter.
Each change changes only the statement, or the element of a screen, it is about, so the rest of the file stays as you wrote it. Each change is a step of the editor's history, named for what it did ("Move Paragraph", "Set numPeriods"): "Undo" and "Redo" (Ctrl+Z, Ctrl+Shift+Z) go back and forth through it one step at a time, and choose again what was chosen then; the History list beside them goes to any step at once. Steps undone stay in the list until a new change replaces them. This tutorial gives the code, to type in Source; the other modes show what each piece is as you go. "Save" (Ctrl+S) writes the file, and "Save and start a session" also starts a session with the app. You can just as well edit the file in any text editor, then use File → Reload apps.

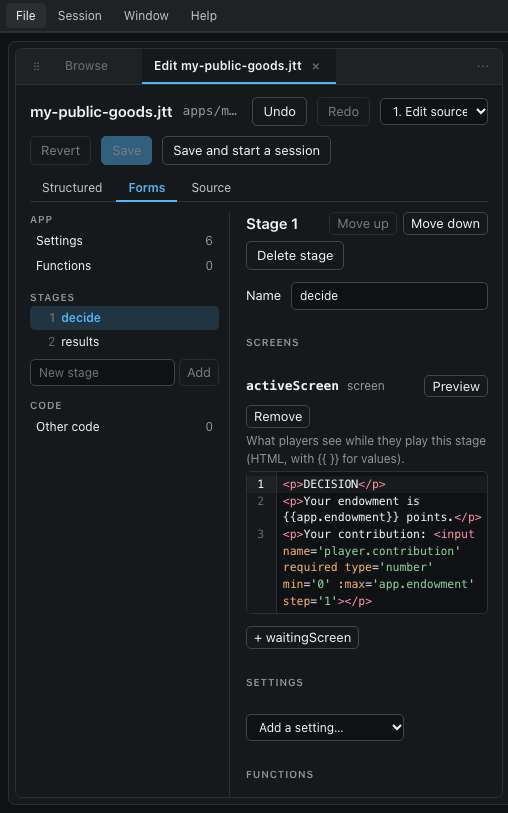

In Forms mode, a stage's page has its screens, settings and functions:
First, we will define the parameters and stages of the app. Each app file begins with a pre-defined App object called app, and fields are modified and/or added to this object using regular Javascript. Replace what the new app has with the following code:
app.numPeriods = 10;
app.groupSize = 4;
app.endowment = 20;
app.factor = 2;
The code above sets the number of periods for this App to 10, and the number of players per group to 4. The last two lines create new fields specific to this app, the endowment that each player will begin with (20), and the production factor (2). In the editor, these are the app's Settings.
The next step is determining the stages of your app. Stages of an app are repeated a given number of times. The repeated public goods game has the following stages:
- Decision stage: players choose how much to contribute.
- Results stage: players are shown their profit for this period.
Stages are created and added to the app using the app.newStage(stageId) function. Add the following code to your file:
let decideStage = app.newStage('decide');
let resultsStage = app.newStage('results');
In the editor, the stages are in the tree (Structured) or listed under the app's parts (Forms), where they can also be added, renamed, moved and deleted.
The content field of a stage is shown to players when they are active in the stage. Content is mostly regular HTML, which consists of sets of tags. Tags are written in between greater than < and less than > characters, such as <p>. Tags can contain content, in which case they should also usually have an ending tag: <p>This is a paragraph.</p>.
For the 'Decide' screen, we want to show the following information to the player:
- A title ("DECISION").
- The player's endowment.
- An input field for the player's contribution.
- A button to confirm the contribution.
We will use the following tags: <p> (paragraph) to display text, <input> to create an input, and <button> to create a button. Set the value of decideStage.activeScreen to the following:
<p>DECISION</p>
<p>Your endowment is {{app.endowment}} points.</p>
<p>Your contribution: <input name='player.contribution' required type='number' min='0' :max='app.endowment' step='1'></p>
jtree uses the Vue framework to bind screen elements to player data. For example, regular text that is encapsulated by double curly braces, {{ and }}, is evaluated, rather than interpreted literally. For example, in the decision screen, {{app.endowment}} would be replaced with "20". The same applies to tag properties (such as the max property in the above example) that are preceded with a : character. Available data objects are player, group (the current player's group), period (the group's period), app, session and stage.
The name attribute of an <input> tag is the name of the field where the input will be stored. So, player.contribution will store the value of the input in a field called contribution on the player object. In the Structured mode, this screen is three paragraphs under the stage's Active screen, the last with the text and the input in it; choosing the input shows its Variable (name), Type, Minimum, Maximum (:max, an expression), Step and Required.
"OK" buttons do not need to be explicitly added in many cases. They are added automatically to active screens if the screen does not contain any buttons already (see Stage.addOKButtonIfNone).
Javascript allows multi-line strings through the use of 'backtick' characters, so for example the previous assignment could look like:
decideStage.activeScreen = `
<p>DECISION</p>
...
`;
For the results stage, we wish to first calculate production of the public good and payoffs, and then display this information to the players. Add the following to the end of your file:
resultsStage.groupStart = function(group) {
group.contributions = group.sum('contribution');
group.production = group.contributions * app.factor;
group.prodPerPlayer = group.production / group.players.length;
for (let i in group.players) { // i = 0, 1, 2, 3
let player = group.players[i];
player.points = app.endowment - player.contribution + group.prodPerPlayer;
}
}
The Stage.groupStart(group) function is called whenever a group begins playing the stage in question. It is passed the Group object, which is essentially a list of Players, as an argument. In our example, whenever a group starts playing this stage, the group contributions, production and production per player are calculated and stored as fields of the group object. Then, for every player in the group, points for the current period are calculated.
Now add the screen content:
resultsStage.activeScreen = `
<p>RESULTS</p>
<p>Your endowment was {{app.endowment}} points. You contributed {{player.contribution}} points.</p>
<p>In total, players in your group contributed {{group.contributions}} points, thus the total amount produced was {{group.production | round(2)}} points.</p>
<p>Thus, your payoff in this period is {{player.points | round(2)}} points.</p>
`;
| round(2) shows a number rounded to 2 decimal places.
In summary, the content of the app file is the following:
app.numPeriods = 10;
app.groupSize = 4;
app.endowment = 20;
app.factor = 2;
let decideStage = app.newStage('decide');
decideStage.activeScreen = `
<p>DECISION</p>
<p>Your endowment is {{app.endowment}} points.</p>
<p>Your contribution: <input name='player.contribution' required type='number' min='0' :max='app.endowment' step='1'></p>
`;
let resultsStage = app.newStage('results');
resultsStage.groupStart = function(group) {
group.contributions = group.sum('contribution');
group.production = group.contributions * app.factor;
group.prodPerPlayer = group.production / group.players.length;
for (let i in group.players) { // i = 0, 1, 2, 3
let player = group.players[i];
player.points = app.endowment - player.contribution + group.prodPerPlayer;
}
}
resultsStage.activeScreen = `
<p>RESULTS</p>
<p>Your endowment was {{app.endowment}} points. You contributed {{player.contribution}} points.</p>
<p>In total, players in your group contributed {{group.contributions}} points, thus the total amount produced was {{group.production | round(2)}} points.</p>
<p>Thus, your payoff in this period is {{player.points | round(2)}} points.</p>
`;
And now the app is complete. Press "Save and start a session" to test it, then follow the previous tutorial on running a session. If the app has a mistake, its panel says where (file, line and position).
An app as a folder
An app can also be a folder: a file app.jtt that sets up the app, and one .jtt file per stage beside it. The stage files are added after app.jtt has run, in the order of their names; a leading number orders them and is not part of the stage's id, so 1_decide.jtt is the stage decide. In a stage's file, stage is that stage and app is the app. The public goods game above, as a folder (see apps/2 features/public-good-v2):
// app.jtt
app.numPeriods = 10;
app.groupSize = 4;
app.endowment = 20;
app.factor = 2;
// 1_decide.jtt
stage.activeScreen = `
<p>DECISION</p>
<p>Your contribution: <input name='player.contribution' required type='number' min='0' :max='app.endowment' step='1'></p>
`;
// 2_results.jtt
stage.groupStart = function(group) {
group.contributions = group.sum('contribution');
// ...
}
stage.activeScreen = `<p>RESULTS</p> ...`;
app.jtt can still create stages itself, with app.newStage(id), or add a stage file under another id with app.addStage(id, file); files it adds are not added again. Other files in the folder (images, client.js, ...) are not stages, and the whole folder is copied to the session's output.
Stages within stages
A stage is an app too: it can have stages of its own, played a number of times each time a group reaches it (for example rounds within each period), and another app's file can be a stage (app.addApp('quiz.jtt')). See apps and stages.
Checking what players enter
The page's min, max and required only guide the browser. To have the server check what a form sends, declare its fields in app.fields, by the name the form uses:
app.fields = {
'player.contribution': { type: 'int', min: 0, max: function(player) { return app.endowment; } },
'player.color': { type: 'choice', choices: ['red', 'blue'] },
'player.comment': { type: 'string', blank: true },
};
decideStage.formFields = ['player.contribution', 'player.color'];
decideStage.validate = function(player, values) {
if (values['player.color'] === 'red' && values['player.contribution'] > 10) {
return 'Red allows at most 10.';
}
};
type is int, number, string, bool or choice; min, max and choices can be values or functions of the player; a field must be filled in unless blank is true. stage.formFields lists the fields a stage's form must send, and stage.validate(player, values) checks them together, returning a message (or messages by field name). If anything is wrong, nothing is stored, the stage goes on, and the page shows the messages under the fields; templates can show them too, from formErrors, e.g. {{ formErrors['player.contribution'] }}. Values are stored converted to their type: '07' for an int field is 7, and for a string field stays '07'.
